FRLH-IE

CABLE STRUCTURE

Conductor : Non-compacted and

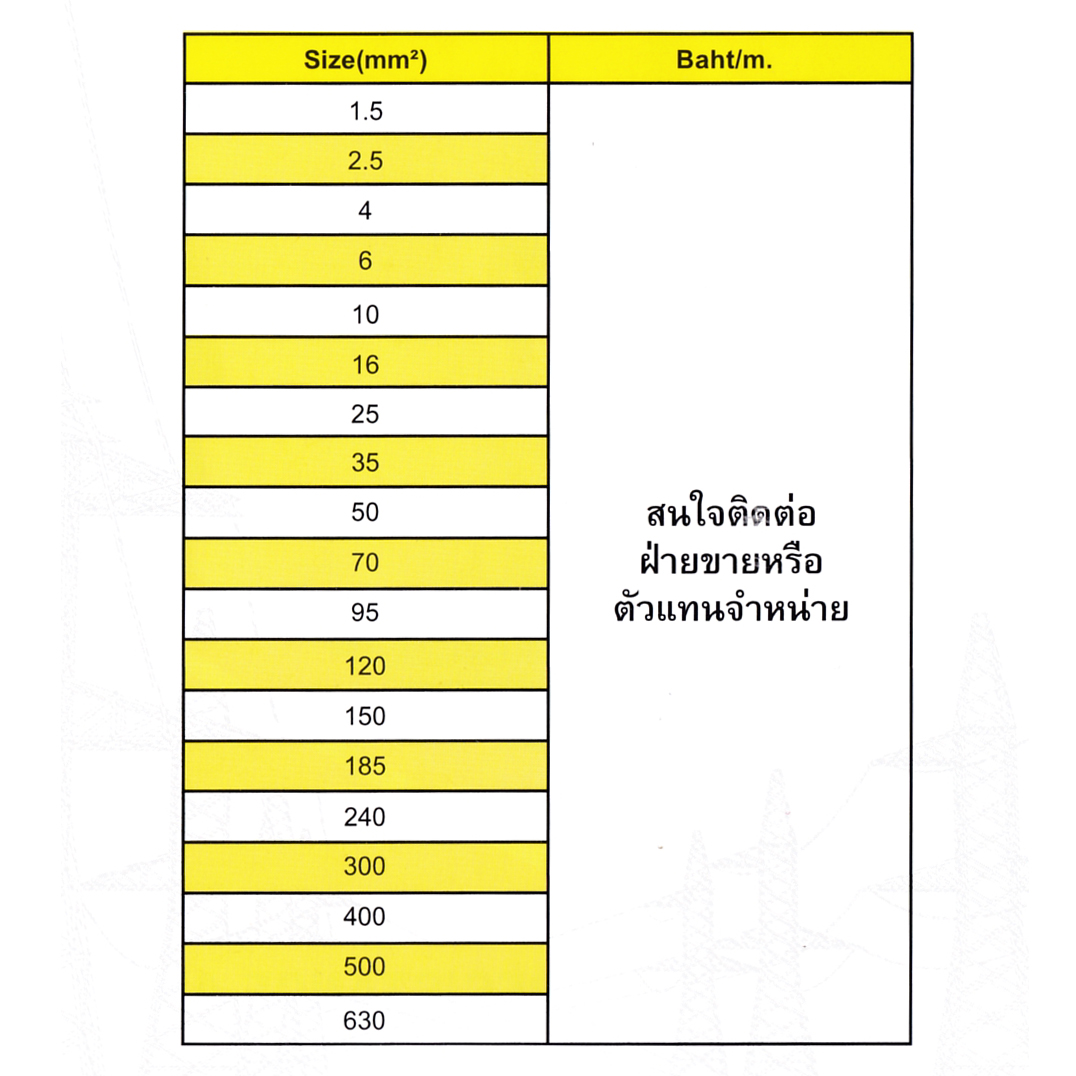

compacted round annealed copper : Size 1.5 mm² up to 630 mm²

Insulation : Cross-Linked polyethylene (XLPE)

with Low smoke and Zero halogen

Core identification

Single-cores : Black or Orange

TECHNICAL DATA

Classification : Maximum conductor temperature 90 °C

: Circuit voltage not exceeding 450/750 volts.

Rated voltage : 450 Volts between Line to Earth

: 750 Volts between Line to Line

Testing voltage : 2,500 Volts

Reference standard

: BS EN 50525-3-41, BS EN 60228, BS EN 60332-1 BS EN 60332-3-24 (Cat.C), BS EN 50267-2-2 BS EN 61034-2

APPLICATION

- Qulu579 Wire way

- เดินร้อยท่อฝังผนัง,ใต้ฝ้า

For fixed installation in electrical cabinet, conduit and wire way which provide flame retardant, low smoke and non toxic emission under fire
