VAF-G

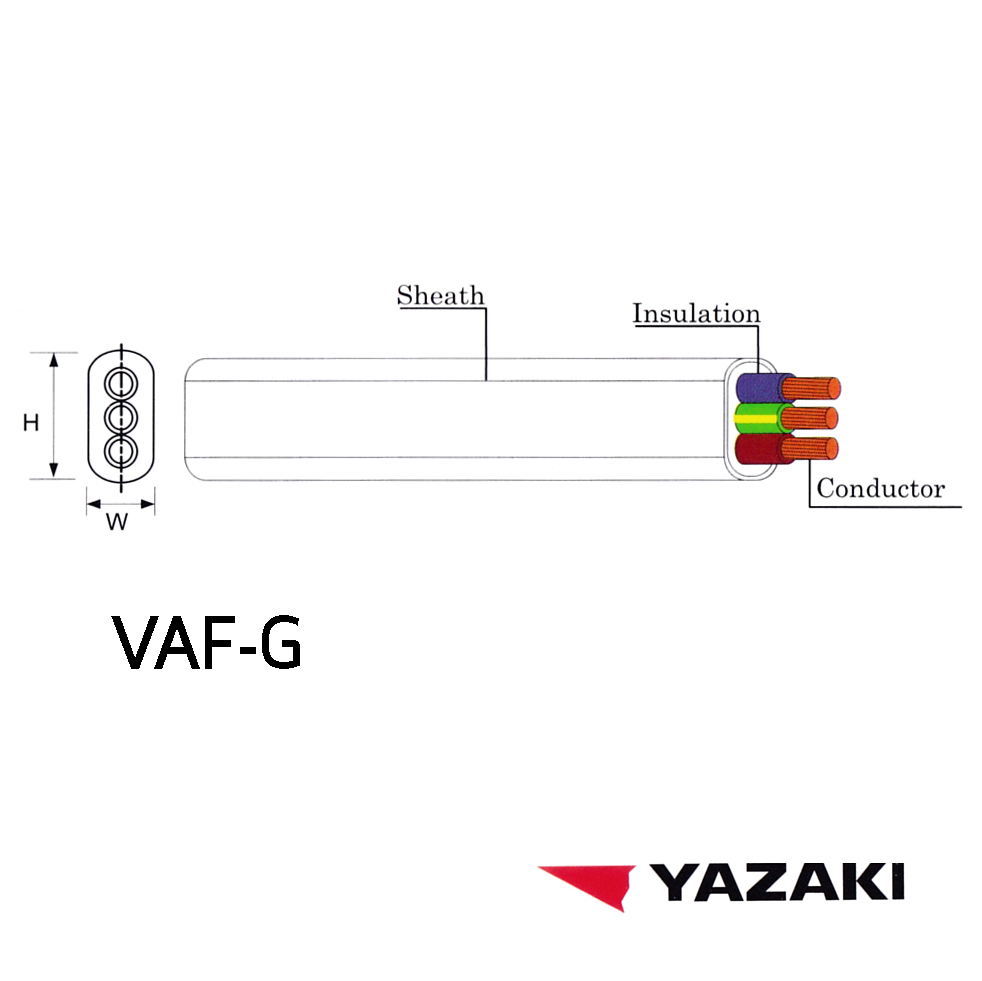

CABLE STRUCTURE

Conductor : Solid and stranded annealed copper

: Size 1 mm² up to 16 mm² for phase wires

: Size 1 mm² up to 16 mm² for ground wire

Insulation : Polyvinyl chloride (PVC/C)

Core identification

2-cores : Blue, Brown and Green/Yellow

Sheath : White polyvinyl chloride (PVC/ST4)

TECHNICAL DATA

Classification : Maximum conductor temperature 70 °C

: Circuit voltage not exceeding 300/500 volts.

Rated voltage : 300 Volts between Line to Earth

: 500 Volts between Line to Line

Testing voltage : 2,000 Volts

Reference standard : TIS 11 Part 101-2553 Table 1

APPLICATION

- เดินเกาะผนัง

- เดินในช่องเดินสาย

- ห้ามร้อยท่อ ห้ามฝังดิน

Building wiring for surface or above ceiling wiring or direct embeded in plaster.
